Harnessing laser light’s ability to gently push and pull microscopic particles, researchers have created the fibre-optic equivalent of the world’s smallest wrench. This virtual tool can precisely twist and turn the tiniest of particles, from living cells and deoxyribonucleic acid (DNA) to microscopic motors and dynamos used in biological and physical research.
This new twist on controlling the incredibly small, developed by physicists at The University of Texas at Arlington (UTA), will give scientists the ability to skilfully manipulate single cells for cancer research, twist and untwist individual strands of DNA and perform many other functions where microscopic precision is essential. The authors describe their new technique, which they call a fibre-optic spanner (the UK term for a wrench), in the paper “Fibre-Optic Spanner” published today in the Optical Society’s (OSA) journal Optics Letters.
The innovation that distinguishes this technique from other optical tools is that it can spin or twist micro-scale objects in any direction and along any axis without moving any optical component. It’s able to do this because it uses flexible optical fibres rather than stationary lasers to do the work. This has the added benefit that the optical fibres can be positioned inside the human body where they can manipulate and help study specific cells or potentially guide neurons in the spinal cord.
Operations of the fibre-optic spanner
Rather than an actual physical device that wraps around a cell or other microscopic particle to apply rotational force, or torque, the fibre-optic spanner is created when two beams of laser light emitted by a pair of optical fibres strike opposite sides of the microscopic object.
Individual photons impart a virtually imperceptible bit of force when they strike an object but an intense beam of laser light can create just enough power to gently rotate microscopic particles. “When photons of light strike and then get reflected back from an object, they give it a small push from an effect called ‘scattering forces’,” explains Samarendra Mohanty, assistant professor of physics at UTA and lead author of the study. This technique is already used to perform optical tweezing, which can move an object forward and backward along a straight line.
In the team’s new optical spanner, the optical fibres use laser beams to first trap an object and then hold it in place. By slightly offsetting the optical fibres, the beams are able to impart a small twisting force, which causes the object to rotate in place. Depending on the positioning of the fibres, it is possible to create rotation along any axis and in any direction. This greatly enhances the researchers’ ability to study and image cells and groups of cells for biological research and medical analysis.
The technique could also be used to rotate single cells to determine by their spin whether they are normal or cancerous. It could also help examine embryos to aid in vitro fertilisation. It could mix or pump the fluids in lab-on-a-chip devices, or move and rotate micro-spheres attached to the opposite ends of a DNA strand to stretch and uncoil the molecule, allowing it to be sequenced more efficiently. In a follow-up paper to be published in Applied Physics Letters, Mohanty describes how this method can be used to rotate and fluorescently scan an object, which would reveal details about its chemical properties.

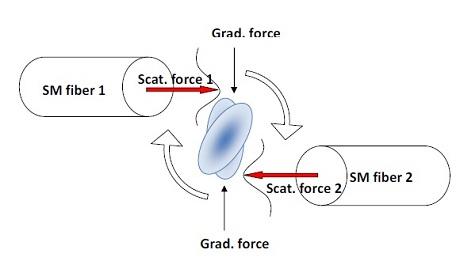

Photo: Fibre-optic spanner in action. The arrows denote where the photons will be directed.
