At this year’s Analytica trade fair in Munich, Germany, three Fraunhofer Institutes will be presenting a project from pre-competitive research. Biologists, computer scientists and laser experts have developed a process to analyze and select cells and then examine their protein production. In pharmaceutical research, this will make it possible to develop active ingredients much faster than before.
With some 35000 visitors and over 1200 exhibitors, and taking place in Munich every two years, Analytica is the meeting point for companies and researchers from across the analytics sector. The trade fair will be opening its doors from 10–13 April 2018 and is celebrating its 50th anniversary this year.
At Analytica, the Fraunhofer-Gesellschaft is presenting OptisCell, a special project from market-focused, pre-competitive research. In the OptisCell process, cells are identified on a carrier then transferred using a laser pulse and finally analyzed on a second carrier to determine their protein production.
Teams from three Fraunhofer Institutes were involved in the development work: the Fraunhofer Institute for Laser Technology ILT in Aachen, the Fraunhofer Institute for Applied Information Technology FIT in Sankt Augustin and the Fraunhofer Institute for Interfacial Engineering and Biotechnology IGB in Stuttgart.
How does the process work?
In a first step, the cells are qualitatively analyzed via Raman spectroscopy to determine whether they produce a certain protein. To do this, the system uses neural networks to distinguish the spectra of producing and non-producing cells.
In a second step, a laser pulse conveys the producing cells to a microwell plate situated opposite. Laser-Induced Forward Transfer (LIFT) is the name of the technique, whereby a laser vaporizes an ultrathin layer of titanium on the carrier. The resulting vapor bubble generates a jet of a medium, such as hydrogel, which then transfers the selected cell to the receiver plate.
In this specially prepared microwell plate, the cells are further analyzed. SERS spectroscopy is used to determine how effectively the cell produces the desired protein. This makes it possible to quickly and automatically find high-producer cells and select them for further use.
The experts at Fraunhofer ILT have already been working on the LIFT process for well over a decade. This has allowed them to successfully optimize the individual laser parameters for various transfer materials. As a result, it is possible to transfer over 80% of the cells and to transfer cells individually.
Scientists at Fraunhofer FIT developed the data management, from the initial inspection to the evaluation of protein production. To do this, they precisely documented all process steps. The system is modular and can be modified for other applications.
The biologists at Fraunhofer IGB manufactured special production cell lines and used them to validate the OptisCell process. To this end, they recorded a variety of Raman spectra individually and compared them against the results of conventional methods.
Application of OptisCell

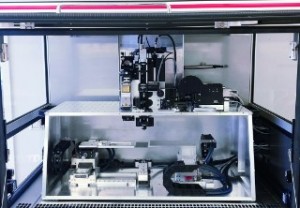

The OptisCell process works without any markers or contact and is designed for fully automated operation. To validate this, the project partners built both a cell line for the production of antibodies and a system for analysis and transferring. The corresponding demonstrator will be on display at the trade fair.
Tested in antibody searching, the process will help the pharmaceutical industry in future to design development processes much more efficiently than today’s expensive, drawn-out affairs. This will reduce costs and complexity such that even SMEs will be able to carry out development work themselves.
Experts will be available at the Fraunhofer Booth 524 in Hall A1 at the Analytica trade fair.
