PW 17 Mikrotrons high-resolution, high-speed machine vision cameras

Mikrotron will present its new line of compact high-resolution, high-speed CoaXPress and CameraLink machine vision cameras at SPIE Photonics West 2017, held from 28 January to 2 February 2017 in San Francisco, California (US).

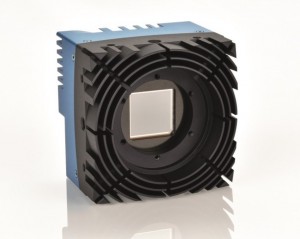

All three new camera models, namely EoSens 25CXP+, EoSens 12CXP+ and EoSens 25CL+, are powered by an advanced OnSemi Python CMOS sensor. The high resolution of the CMOS global shutter camera models, combined with a precise trigger and synchronization, a high frame rate and short integration times, support image quality and allow, for example, capturing even the smallest details of components in PCB assembly in high speed. The photo-sensitivity of the high-speed cameras of 5.8 V/lux*s @550nm delivers reliable image information even in low-light conditions. All camera models are based on a unique, robust and compact design (80 x 80 x 66 mm) and are engineered for use in rough environments. The fan-less design supports vibration-free operation.

The CXP+ models come with a 4-channel CXP-6 CoaXPress V1.1 interface, transmitting data at speeds up to 25 Gigabits per second in real time; while the CL+ camera takes advantage of CameraLink technology.

EoSens 25CXP+ offers up to 80 frames per second at the extremely high 5,120 x 5,120 pixel resolution. EoSens 12CXP+ offers 165 frames per second at 4,096 x 3,072 pixel resolution. Windowing down the image resolution further increases the frame rate up to 765 frames per second for 1024 x 768 pixel resolution. EoSens 25CL+ supports 32 frames per second at 25 megapixel resolution.

The new camera models are suited for all classical machine vision and scientific applications that combine the demand for high resolution as well as high speed. All models of the new high-resolution, high-speed camera family are GenICam and EMVA 1288 compliant.

Labels: Mikrotron,CoaXPress,CameraLink,machine vision cameras,SPIE Photonics West 2017,EoSens 25CXP+,EoSens 12CXP+,EoSens 25CL+,OnSemi PYTHON CMOS sensor
