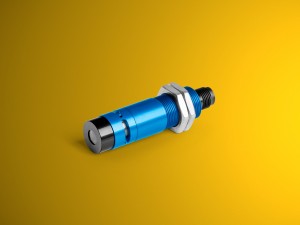

Thanks to its M18 thread, the Flexpoint MV18 line laser module can be integrated
into standardized systems. Laser Components has designed this product to deliver homogeneous power distribution along the entire projected line — a requirement for its use in industrial image processing. The robust module is available in a range of wavelengths between 405 nm and 850 nm. With an output power of up to 200 mW, the 450-nm version currently is the most powerful of the MV series.
The Flexpoint MV18 can be focused by means of a mechanism, which ensures high beam stability and low line drift. The power supply can be connected by an M12 thread at the rear of the module.
Five optics variants are possible with different combinations of line thickness and depth of field available to match the demands of different applications. In addition to the standard version with adjustable focus, Laser Components also offers the module in a low-priced version with factory-fixed focus.
