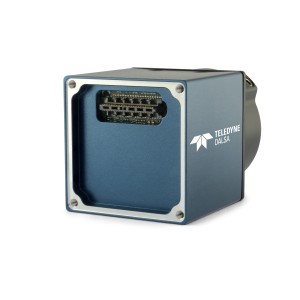

Teledyne DALSA, a Teledyne Technologies company and specialist in machine vision technology, announced its second-generation Calibir DXM640 camera. The compact and uncooled Calibir LWIR platform offers outstanding shutterless performance and is optimized for Size, Weight and Power (SWAP). This higher performing version will be useful for both machine vision, where synchronization is required in an active inspection system, and in defense and security applications requiring low NETD and networked cameras.
The Calibir DXM640 features both shutter and shutterless operation and rapid image output on power up while delivering uniform response over the entire operating temperature range. This makes the Calibir DXM640 ideal for thermal imaging applications requiring uninterrupted image acquisition. The ULIS Gen2 sensor offers an improved NETD and the updated calibration includes customized gain correction on a per lens basis to offer even better image performances and response uniformity.
Key Features:
- 640 x 480 VGA resolution
- 17 μm square pixels
- 29mm x 37mm x 59.53 mm
- Visual camera multicolor status LED
- Gigabit Ethernet (GigE)
- General purpose opto-coupled input/output (external trigger, user, count or timer driven triggering)
- Flexible general-purpose Counter and Timer functions for internal/external controls
- IEEE1588-2008 Precision Time Protocol synchronization capable
