The Seepos from SiTek is a PSD signal processing tool designed for users who want a simple system to become familiar with the technology, experienced users who need a test bed to develop their own OEM PSD system or experienced users who want to test the various parameters of PSDs in order to optimize their current systems.
The high-speed electronics together with its USB interface are key components in making the Seepos an easy-to-use system, and with its large dynamic range, laser spots from nW to mW can be detected in both CW and modulated modes.
The Seepos is provided with a software package (LabVIEW compatible!), which allows users to control all features of their system, such as bias voltage, amplifier gain, analogue and digital features and more, through a graphical user interface.
The Seepos software continually displays the real-time spot position in both XY and X(t), Y(t) graphs, and with optimized inbuilt plot algorithms all data is visually seen on screen, even during full-speed measurements. This software also includes a complete data analysis suite, which provides tools for data analysis and visualization that allow users to rapidly scan through large sets of data in order to find specific sections of interest.

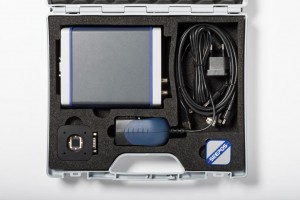

The Seepos hardware features a DB9 connector for the PSD mounts (which can be provided in their full assembly), a USB interface, and light source modulation input and output triggers (BNC connectors) for modulating the light to increase system accuracy.
