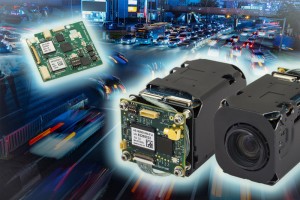

2018 saw Sony launch its new FCB EV7520A block camera as a replacement module to the discontinued EV7520 model. Active Silicon has confirmed that its existing field-proven Active FCB-EV-HD-SDI and the Harrier 3G-SDI interface boards are fully compatible with this new camera. The combination of Sony’s latest block camera and Active Silicon’s hardware offers high-definition video and image capture in a compact solution.
Developed for robotics, surveillance and traffic applications, the 50 x 60 x 89.7-mm camera offers 30x optical and 12x digital zoom, using a 1/2.8-type CMOS image sensor. Key features include the VISCA command protocol, advanced noise reduction, auto ICR, spherical privacy zone masking and wide dynamic range.
The Harrier 3G-SDI Camera Interface Board provides a solution to take full advantage of the high-definition digital video output, supporting all the 3G-SDI and HD-SDI modes of the camera up to 2.97 Gbps. In addition, the interface board can provide simultaneous analog output of standard-definition (SD) video in 720 p 50/60 modes in switchable 4:3 or 16:9 aspect ratios for distortion-free display. Other features include a built-in test pattern, which conforms to the SMPTE RP-219-2002 specification, and HD visually lossless compression (HD-VLC), allowing much greater cable lengths and the use of slip rings.
Alternatively, users can select the Active FCB-EV-HD-SDI Interface Board, which has been widely used in applications during the lifetime of the FCB-EV7520 camera. All camera HD-SDI modes are supported, an RS-232 communications port and reset line are available and a DIP switch located on the rear of the module allows the HD video mode to be conveniently selected without the need to send serial commands to the camera.
