inspect L Float

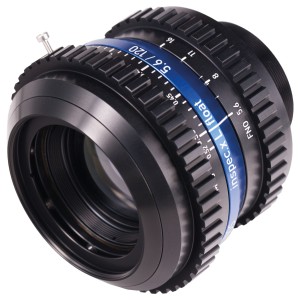

Qioptiq, an Excelitas Technologies Company, introduces the LINOS inspec.x L Float 5.6/120 Lens, which delivers brilliant optical performance over a large image circle of 82mm. By using floating element optics, the new LINOS inspec.x L Float 5.6/120 Lens achieves high performance over an extremely wide magnification range from 0.06x to 0.52x with constant high performance over the complete image field for a variety of machine vision applications including PCB, OLED and FDP inspection, as well as cultural heritage use cases.

The inspec.x L Float 5.6/120 Lens enlarges the field-proven inspec.x L Lens series in a new range of magnification with a brilliant imaging performance. Made in Germany, the latest inspec.x supports all modern high-resolution area scan and line scan sensors up to a diagonal of 82mm. Inspec.x L Float 5.6/120’s full-metal housing makes it suitable for industrial use and the integrated pulleys for magnification and aperture allow remote control with timing belts in automated environments.

Product specifications include:

  • Focal length: 120mm
  • Aperture: 5.6 – 16
  • Extreme magnification range of -0.06x – -0.52x
  • Floating element optics
  • Perfect match with 5µm pixel size
  • Working distance: 302mm – 2037mm
  • Spectral range: 400nm – 750nm

The LINOS inspec.x L Float 5.6/120 Lens will be on display at Photonics West, February 1 – 6, 2020. Visit Excelitas at booth #1149 to learn more.

Labels: Excelitas,Photonics West 2020,inspec.x L Float,imaging,vision
