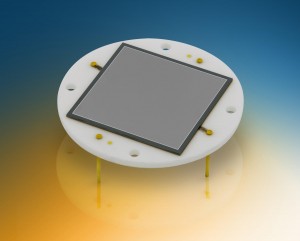

Opto Diode Corporation, an ITW company, introduces the AXUV576C, a large square photodiode with a 576.5 mm² active area that is specially designed for electron and radiation detection. The new device is part of Opto Diode’s family of radiation detectors and offers electron detection to 200 eV. The square active area is configured on a round 4-pin package, with 2 anode pins and 2 cathode pins for added connection versatility.
Features include reverse breakdown voltage of 5 volts; capacitance is 5 nF (typical) to 15 nF (max.), with a maximum rise time of 50 microseconds. Storage and operating temperatures range from -10 °C to +40 °C (ambient) and from -20 °C to +80 °C in nitrogen or vacuum environments. The lead soldering temperature is 260 °C.
To view the responsivity graphs for the AXUV576C photodiodes, please go to Opto Diode’s data sheet here: https://optodiode.com/pdf/
