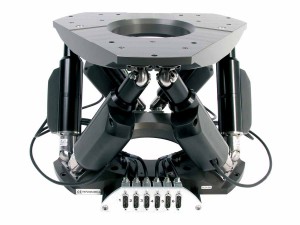

Newport Corporation, a specialist in high precision motion and photonics solutions, is introducing the HXP200 series hexapods. The latest addition to Newport’s hexapod line can position loads up to 50 kg on six axes with ultimate precision, speed and accuracy. The HXP200 features a ±59 mm travel range, high 81 mm/s speed and excellent stiffness and stability. The HXP200S is a wider and stiffer version of the HXP200 capable of handling loads up to 85 kg.
With its superior performance, high load capacity and small footprint, the HXP200 is an ideal solution for complex motion applications in alignment and bonding, material analysis, or sensor calibration and simulation. It can also be used in many other applications that require high precision motion with six degrees of freedom such as work-piece positioning in automotive manufacturing and movement of large telescope mirrors.
Like all Newport hexapods, the HXP200 comes with dedicated software that makes programming of complex motion easy through automatic calculation of all coordinate transformations. All HXP hexapods feature two software-defined virtual centers of rotation as well as RightPath™ trajectory control for minimal runout along a continuous multi-dimensional motion path. New visualization software called HexaViz enables position simulation with load and orientation on any HXP model to help users pick the best HXP for their application.
