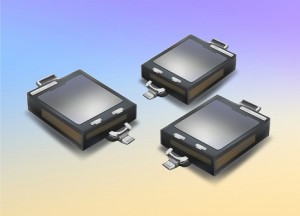

Opto Diode, a division of ITW, and a member of the ITW Photonics Group, announces the second in a series of surface-mount photodiodes, the ODD-900-002. With high sensitivity and short switching time, the low capacitance photodiode is ideal for use in a variety of medical diagnostic applications.
The surface-mount packaging allows for easy and convenient integration into new or existing systems. The device operates in the spectral bandwidth from 400 nanometres (nm) minimum to 1100nm maximum, with a peak sensitivity of 940nm. Typical responsivity is at 0.44 amperes per watt (A/W) with typical reverse dark current at 5 nanoamperes (nA) and total capacitance typically at 25 pico farads (pF).
Robust and flexible, the ODD-900-002 operating temperatures range from -25°C (-13°F) to +85°C (185°F). The device can be stored at temperatures ranging from -40°C (-40°F) to +85°C (185°F) for added convenience. Similar to the recently introduced ODD-900-001 Surface Mount Photodiode with Daylight Filter, the new ODD-900-002 photodiode’s power dissipation is 150 milliwatts (mW) at or below 25°C (free air temperature). Both new devices also feature a soldering temperature of 260°C (482°F; soldering time is 5 seconds, maximum).
Opto Diode’s new surface-mount photodiodes are available now.
