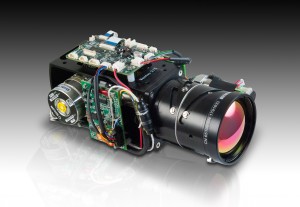

Sierra-Olympic Technologies, supplier of infrared (IR) and thermal imaging components, cameras and systems solutions for imaging applications, introduces the Ventus 275, a midwave-infrared, 640 x 512 x 15 µm imaging engine with an f/5.5, 19 - 275 mm continuous zoom (CZ) optic. The compact, lightweight (approx. 1153 g) MWIR thermal camera core is specially designed for OEM integrators of surveillance system enclosures and other imaging gimbals. Sierra-Olympic will showcase the new cost-effective camera core in Hall 1, Stand 1B80 at VISION 2018 in Stuttgart, Germany, 6–8 November 2018.
Ventus 275 features
The Ventus 275 features include an indium antimonide (InSb) focal plane array and a finely tuned athermalized and parfocal zoom lens with a 28.4 - 2° horizontal field of view (HFOV). The powerful image processing engine provides advanced image enhancements including electronic image stabilization, automatic/manual gain control, adaptive contrast control (CLAHE / LAP) and optional target tracking/detection. The camera also features a shutter-based non-uniformity correction (NUC) and an environmentally sealed front lens element.
Multiple output interfaces
Multiple output interfaces include analog NTSC/PAL video, H.264/MJPEG IP video, and 14-bit Camera Link digital video, making the MWIR Ventus 275 ideal for applications in security/surveillance, fixed monitoring, defense, manned/unmanned ground and airborne platforms. Sierra-Olympic’s staff is available to support OEM integration and assist with exportation (EAR ECCN 6A003.b.4.a) and documentation tasks.
