Trioptics has launched a modular metrology and manufacturing solution for actively aligning and testing camera modules. In addition to testing signal and image quality of camera modules, increasing resolutions make it even more important to provide active alignment for optical systems and sensors. Particularly in the consumer electronics, automotive, surveillance technology and medical technology sectors, the requirements of the camera modules are constantly rising. An active alignment ensures optimal performance of the camera modules.
The ProCam portfolio includes measurement systems with test charts for applications with finite object distance, as well as innovative solutions with collimators for infinite and variable object distances. Motorized focusable collimators allow the variable setting of both infinite and finite object distances via the corresponding software. With ±85°, the measurement range in the field is almost unlimited.

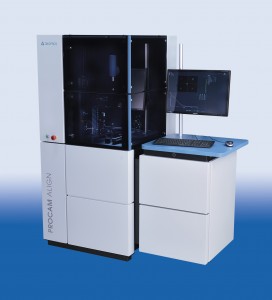

ProCam Align is based on ProCam measurement technology and can also be used to align the sensor with the camera optics in up to six degrees of freedom with sub-micron accuracy. The components are focused, moved, tilted and rotated to one another during one single alignment cycle. An integrated bonding and curing solution ensures an automated and cost optimized procedure for producing high-quality modules in serial production. The software stores all measurement data to ensure the traceability of the process.
Trioptics is the market leader for measuring the image quality of optics and has gathered extensive experience while working on customer-specific sensor measurement projects for many years. This experience has now been combined in a new group of products offered by Trioptics: ProCam is a flexible and modular measurement and production solution, which is perfectly adapted to the customer's application and suited to face the challenges of the high-end camera module market with its ever increasing resolutions.
